N8600P

Home
N8600P

N8600P

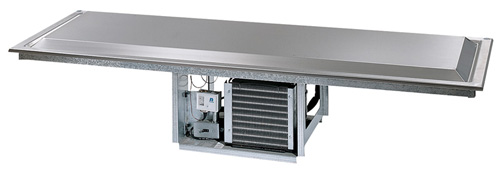

Drop-In Self-Contained Hot & Cold Combination Pan

Features
Technical Specifications
Accessories
Videos
Downloads

NSF-4 and NSF-7 certified for hot and cold operation

Remote control panel with 3-way hot/cold/off power switch and thermostat for hot operation

Thermostat for cold operation located next to condensing unit

Adjustable pan support for flush mounted hot operation or 2” recessed cold operation

Interior
Interior liner is constructed of stainless steel with a 1” (2.5cm) drain. Adjustable stainless steel pan rest for flush mount heating or 2” (5cm) recessed cooling to accommodate up to 6” (15cm) deep 12”x20” pans, supplied by others. Stainless steel immersion heater(s) installed in bottom for wet only heating operation.

Exterior
Top is constructed of one-piece stainless steel. Exterior body is constructed of galvanized steel with high density environmentally friendly, Kyoto Protocol compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane insulation throughout.

Refrigeration
Condensing unit is suspended on a galvanized steel frame. Environmentally friendly R290 refrigerant is utilized. Temperature controlled by thermostat located next to condensing unit.

Operation
Remote control panel contains 3-way Hot/Cold/Off power switch and thermostat for heated operation. As a safety feature, the food well immersion heater includes a high limit safety switch. If the heater gets too hot the safety switch will trip, turn the heater off and illuminate a control panel pilot light.

Electrical
All units must be hard wired at installation.

N8630P

W x D x H	303/4" x 26" x 253/4" 78.1 cm x 66 cm x 65.4 cm
Weight	164 lb 74.4 kg
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	25.0 Amps
Certifications

N8643P

W x D x H	431/2" x 26" x 253/4" 110.5 cm x 66 cm x 65.4 cm
Weight	198 lb 89.8 kg
Power Input Type	Electric
Primary Power Input	230 V x 60 Hz x 1 PH
Energy Use	21.0 Amps
Certifications

N8656P

W x D x H	561/4" x 26" x 253/4" 142.9 cm x 66 cm x 65.4 cm
Weight	233 lb 105.7 kg
Power Input Type	Electric
Primary Power Input	230 V x 60 Hz x 1 PH
Energy Use	21.0 Amps
Certifications

N8669P

W x D x H	69" x 26" x 253/4" 175.3 cm x 66 cm x 65.4 cm
Weight	266 lb 120.7 kg
Power Input Type	Electric
Primary Power Input	230 V x 60 Hz x 1 PH
Energy Use	42.0 Amps
Certifications

	Automatic water fill
	Relocate compressor
	Special Voltage* 3-phase electrical *Inclusion of this option will alter electrical specifications of the unit
	Remote refrigeration*
	Counter protectors
	Extended warranty

Related Products

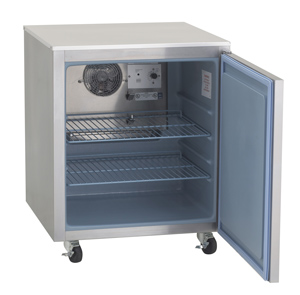

407P Undercounter Freezer

407P Undercounter Freezer

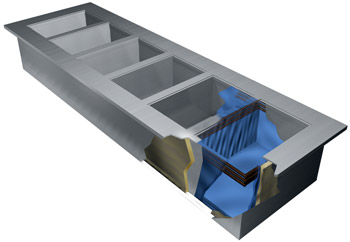

8100-EFP

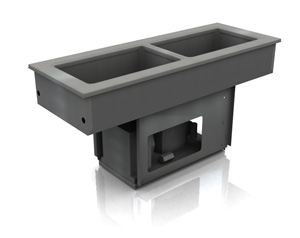

8100-EFNP

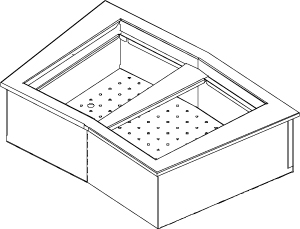

N8000-R

N8100BP

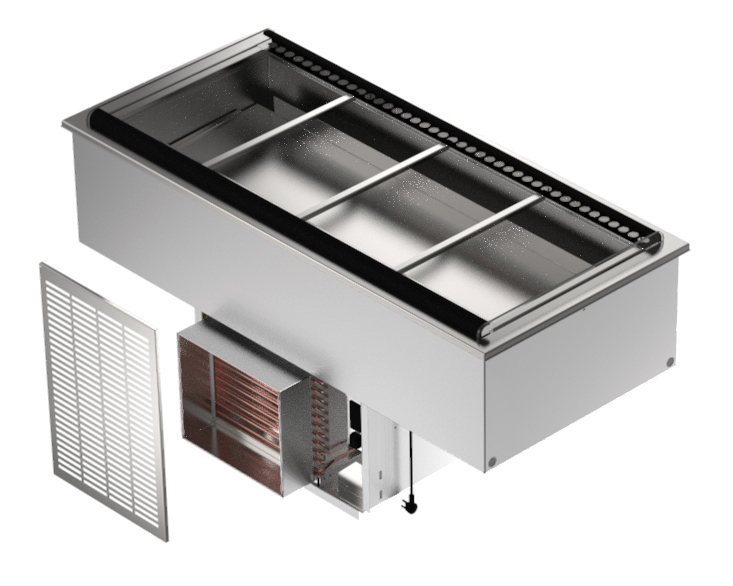

N8100-FAP

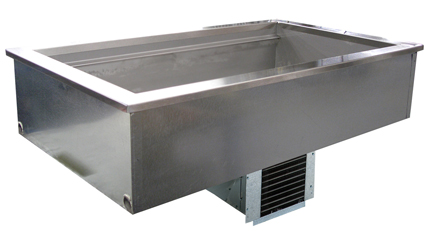

N8100NBP

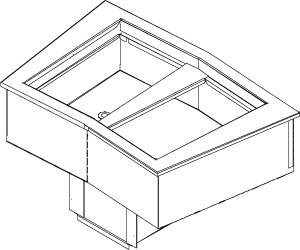

N8100-BR

N8200

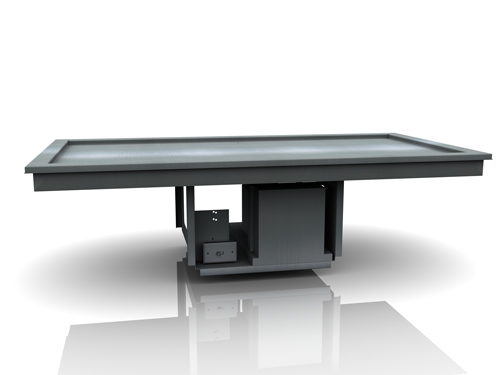

N8200-ST
