N8000-R

Home
N8000-R

N8000-R

Drop-In Curved Ice Cooled Cold Pan

Features
Technical Specifications
Accessories
Videos
Downloads

Exterior
Top is one piece 18-gauge stainless steel. Exterior housing is 24-gauge galvanized steel.

Interior
Interior liner is 22-gauge stainless steel and is creased to 1.00" (3cm) diameter drain. Unit has a sectional, removable perforated stainless steel false bottom. Stainless steel holding clips and adapter bars are provided to allow placement of 12" x 20" (30cm x 51cm) pans. Unit is supplied with 1" (3cm) plastic drain to be installed by customer. Unit is insulated with high density closed cell environmentally friendly polyurethane.

N8044-R

W x D x H	4035/64" x 2563/64" x 105/8" 103 cm x 66 cm x 27 cm
Weight	100 lb 45.4 kg
Power Input Type	Electric
Certifications

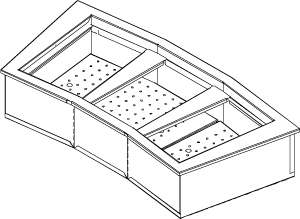

N8059-R

W x D x H	5715/16" x 2563/64" x 105/8" 147.2 cm x 66 cm x 27 cm
Weight	118 lb 53.5 kg
Power Input Type	Electric
Certifications

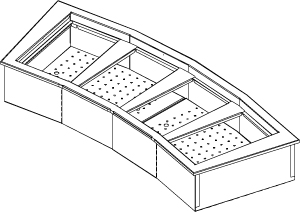

N8076-R

W x D x H	735/8" x 2563/64" x 105/8" 187 cm x 66 cm x 27 cm
Weight	145 lb 65.8 kg
Power Input Type	Electric
Certifications

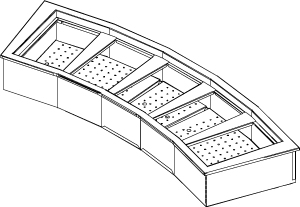

N8094-R

W x D x H	8949/64" x 2563/64" x 105/8" 228 cm x 66 cm x 27 cm
Weight	164 lb 74.4 kg
Power Input Type	Electric
Certifications

	Custom pan template
	Adapter bars
	Flexishield® food shields, single or dual service
