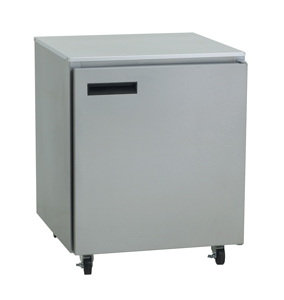

407P Undercounter Freezer

Home
407P Undercounter Freezer

407P Undercounter Freezer

Undercounter Series

Versatile High Performance Undercounter Freezer Units Designed for the Real World

Features
Technical Specifications
Accessories
Videos
Downloads

Exterior bottom
Exterior bottom shall be heavy-gauge galvanized metal.

Exterior ends shall be heavy gauge stainless steel.

Base interior
Base interior shall be one-piece thermoformed ABS plastic material, with integral shelf supports. ABS interior is backed by a limited lifetime warranty. Base shall be fully insulated with high-density foamed-in-place environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane.

407P-CA / 407P-CA-CE
Equipment is shipped with loose 3” diameter (3.75” ride height) casters high casters (two locking and two non-locking) unless mounting is specified on original sales order. Exterior top shall be one-piece, heavy-gauge aluminum with all edges turned down.

Freezer
Freezers only: Freezer system shall use R290 refrigerant. Compressor shall be 1/5 h.p., with condenser coil, hot gas condensate evaporator and temperature control mounted on rear of cabinet. Evaporator coil shall be mounted on the interior rear wall of the cabinet. Refrigerant flow shall be controlled by a capillary tube. Cabinet shall maintain -5°F to 0°F (-21°C to -18°C) interior cabinet temperature.

Door
Door shall have a heavy-gauge stainless steel exterior, with a thermoformed ABS plastic interior liner, and shall be fully insulated with foamed-in-place polyurethane. Door handle shall be black, recessed ABS. Cabinet shall have (1) adjustable epoxy-coated wire shelf installed.

407P / 407P-CE
Equipment is shipped with loose 6” (15.2cm) high metal legs with black enamel finish unless mounting is specified on original sales order. Exterior top shall be one-piece, heavy-gauge stainless steel with front edge turned down to form nosing and rear edge turned down.

Electrical Connections
Electrical Connections: 115 volt, 60 Hertz, single phase. Unit shall have a 6' (1.8 m) long electrical cord and NEMA 5-15P plug. Cord and plug shall be located on the rear of the cabinet 16" (40.6cm) above floor, 5" from left side.

Electrical connections (CE models only)
Electrical connections shall be 230-240 volt, 50 Hertz, single phase. Unit shall have a 6’ (1.8m) long electrical cord and CEE 7/7 plug. Cord and plug shall be located on rear of cabinet, 16” (41 cm) above floor, 5” (13 cm) from left side.

407P

Undercounter Freezer Base

W x D x H	271/4" x 283/8" x 351/2" 69.2 cm x 72.1 cm x 90.2 cm
Weight	176 lb 79.8 kg
Power Output	0.2 Horsepower
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	4.5 Amps
Certifications

407P-CA

407P Undercounter Series - R290

W x D x H	271/4" x 273/4" x 331/4" 69.2 cm x 70.5 cm x 84.5 cm
Weight	168 lb 76.2 kg
Power Output	0.2 Horsepower
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	4.5 Amps
Certifications

407P-CE

Undercounter Freezer Base on legs

W x D x H	271/4" x 281/2" x 351/2" 69.2 cm x 72.4 cm x 90.2 cm
Weight	176 lb 79.8 kg
Primary Power Input	220-240 V x 50 Hz x 1 PH
Energy Use	2.1 Amps
Certifications

407P-CA-CE

Undercounter Freezer Base on casters

W x D x H	271/4" x 273/4" x 331/4" 69.2 cm x 70.5 cm x 84.5 cm
Weight	168 lb 76.2 kg
Primary Power Input	220-240 V x 50 Hz x 1 PH
Energy Use	2.1 Amps
Certifications

	Additional shelf
	Door lock
	Plastic laminate on front
	Stainless steel back
	Stainless steel single-tier overshelf
	2" diameter (2.5" ride height) casters
	5" diameter (6" ride height) casters
	Model 409 stacking collar
	220 volt, 50 hertz electrical system *This option will alter the unit’s electrical specifications
