N8100-BR

Home
N8100-BR

N8100-BR

Drop-In Curved Self-Contained Mechanically Cooled Cold Pans

Features
Technical Specifications
Accessories
Videos
Downloads

Exterior
Top is one piece 18-gauge stainless steel. Exterior housing is 24-gauge galvanized steel.

Interior
Interior liner is 22-gauge stainless steel and is creased to 1.00" (3cm) diameter drain. Unit has a sectional, removable perforated stainless steel false bottom. Stainless steel holding clips and adapter bars are provided to allow placement of 12" x 20" (30cm x 51cm) pans. Unit is supplied with 1" (3cm) plastic drain to be installed by customer. Unit is insulated with high density closed cell environmentally friendly polyurethane.

Refrigeration System
Condensing unit is suspended below the cold pan on a 16-gauge steel frame and uses R290 refrigerant. Temperature control has ON/OFF position to shut down cold pan. Unit has an 8' (2.4m) cord and NEMA 5-15P plug.

Stainless steel louver
A stainless steel louver is provided for field installation on the front of the cabinet, 4" below top of counter; cutout dimension for each is 12" x 23.5" (30.5cm x 59.7cm). A second opening 11" x 22" (28cm x 56cm) at the rear of the cabinet should be provided at installation to allow for proper air circulation.

N8144-BR

W x D x H	4031/64" x 261/16" x 2113/16" 102.8 cm x 66.2 cm x 55.4 cm
Weight	161 lb 73 kg
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	3.7 Amps
Certifications

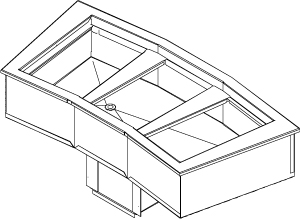

N8159-BR

W x D x H	577/32" x 261/16" x 2113/16" 145.3 cm x 66.2 cm x 55.4 cm
Weight	184 lb 83.5 kg
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	5.6 Amps
Certifications

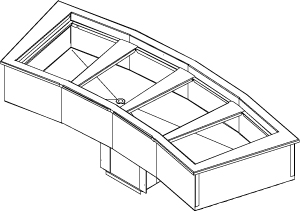

N8176-BR

W x D x H	7311/16" x 261/16" x 2113/16" 187.2 cm x 66.2 cm x 55.4 cm
Weight	233 lb 105.7 kg
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	7.3 Amps
Certifications

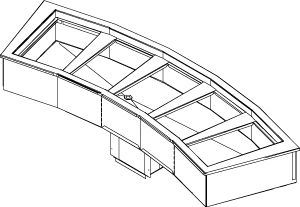

N8194-BR

W x D x H	8951/64" x 261/16" x 2113/16" 228.1 cm x 66.2 cm x 55.4 cm
Weight	243 lb 110.2 kg
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	7.3 Amps
Certifications

	Custom pan template
	Adapter bars
	Flexishield® food shields, single or dual service
	Relocate compressor
	Mullion fan assembly
	Special voltage* 220V/50 cycle electrical *Inclusion of this option will alter electrical specifications of unit
	Remote Toggle Switch Ships loose as Part# AS000-473-003W
