Welbilt EMEA - M46 Master Series 34" Hot Top Ranges

M46 Master Series 34" Hot Top Ranges

Heavy-Duty Range with 2 Even-Heat Hot Tops

Available with a standard oven, storage cabinet base, or as a modular top.

Ovens – A 40,000 BTU/hr standard oven with a fully porcelainized interior. Piezo spark ignition. A sturdy, heavy-duty oven door with a “keep-cool” door handle. Convection oven option available.

Storage Cabinet Base – A stainless steel storage base with stainless steel doors.

Even-Heat Hot Tops – Heavy-duty, cast-iron, even-heat hot top sections each with three H-burners rated at 45,000 BTU/hr total.

Note: All Master Series ranges require a high shelf or backguard flue attachment, sold separately.

M46R Master Series 34" Hot Top Range with Standard Oven

Oven – A 40,000 BTU/hr standard oven with a fully porcelainized interior. Piezo spark ignition. A sturdy, heavy-duty oven door with a “keep-cool” door handle. Convection oven option available.

Even-Heat Hot Tops – Two heavy-duty, cast-iron, even-heat hot top sections, each with three H-burners rated at 45,000 BTU/hr total.

Note: All Master Series ranges require a high shelf or backguard flue attachment, sold separately.

W x D x H	34" x 38" x 363/8" 86.4 cm x 96.5 cm x 92.4 cm
Weight	450 lb 204.1 kg
Power Output	130000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications

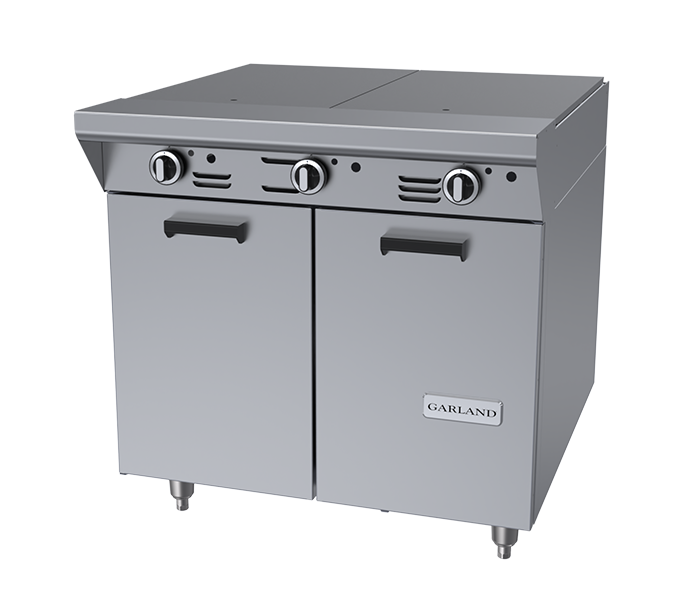

M46S Master Series 34" Hot Top Range with Storage Cabinet

Storage Cabinet Base – A stainless steel storage base with stainless steel doors.

Even-Heat Hot Tops – Two heavy-duty, cast-iron, even-heat hot top sections, each with three H-burners rated at 45,000 BTU/hr total.

Note: All Master Series ranges require a high shelf or backguard flue attachment, sold separately.

W x D x H	34" x 38" x 363/8" 86.4 cm x 96.5 cm x 92.4 cm
Weight	350 lb 158.8 kg
Power Output	90000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications

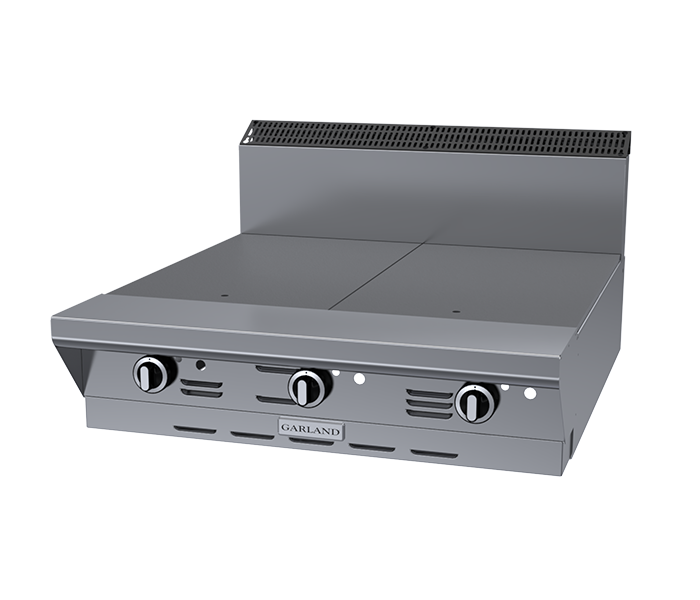

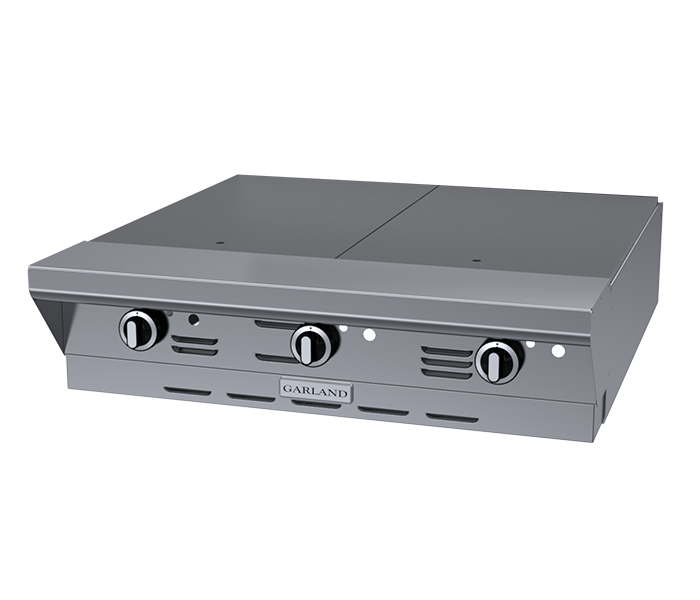

M46T Master Series 34" Modular Hot Top Range

Even-Heat Hot Tops – Heavy-duty, cast-iron, even-heat hot top sections, each with three H-burners rated at 45,000 BTU/hr total.

Stainless steel stand available, sold separately.

Note: All Master Series ranges require a high shelf or backguard flue attachment, sold separately.

W x D x H	34" x 38" x 91/2" 86.4 cm x 96.5 cm x 24.1 cm
Weight	260 lb 117.9 kg
Power Output	90000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications
