Welbilt EMEA - M54 Master Series 34" Combination Top Ranges

M54 Master Series 34" Combination Top Ranges

Heavy-Duty Range with 17" Front-Fired Hot Top & 2 Open Burner Combination Top

Available with a standard oven, storage cabinet base, or as a modular top.

Ovens – A 40,000 BTU/hr standard oven with a fully porcelainized interior. Piezo spark ignition. A sturdy, heavy-duty oven door with a “keep-cool” door handle. Convection oven option available.

Storage Cabinet Base – A stainless steel storage base with stainless steel doors.

Front-Fired Hot Tops – Heavy cast-iron, front-fired hot top plates with 3 individually controlled jet burners rated at 45,000 BTU/hr total for each section. Removable cast-iron rings and lids, perfect for sautéing.

Open Burners – Two-piece Starfire Pro® open burners rated at 35,000 BTU/hr per burner with protected pilot lights, removable ring grates and cast-iron top grates. The grate design allows pots to slide easily across the surface from burner to burner. Stainless steel drip tray under open burners.

Note: All Master Series ranges require a high shelf or backguard flue attachment, sold separately.

M54R Master Series 34" Combination Top Range with Standard Oven

Oven – A 40,000 BTU/hr standard oven with a fully porcelainized interior. Piezo spark ignition. A sturdy, heavy-duty oven door with a “keep-cool” door handle. Convection oven option available.

Front-Fired Hot Top – A heavy cast-iron, front-fired hot top plate with 3 individually controlled jet burners rated at 45,000 BTU/hr total. Removable cast-iron ring and lid, perfect for sautéing.

Open Burners – Two 2-piece Starfire Pro® open burners rated at 35,000 BTU/hr per burner with protected pilot lights, removable ring grates and cast-iron top grates. The grate design allows pots to slide easily across the surface from burner to burner. Stainless steel drip tray under open burners.

Note: All Master Series ranges require a high shelf or backguard flue attachment, sold separately.

W x D x H	34" x 38" x 363/8" 86.4 cm x 96.5 cm x 92.4 cm
Weight	475 lb 215.5 kg
Power Output	155000 N/A
Power Input Type	Gas - Natural Gas - Propane
Certifications

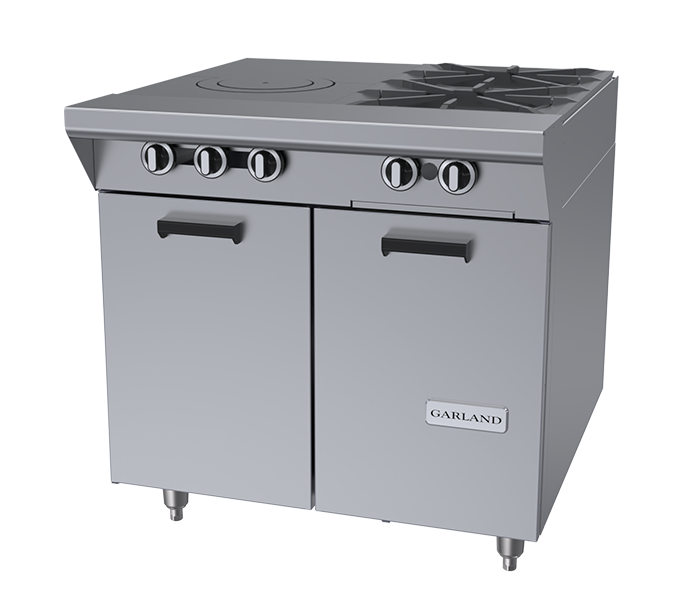

M54S Master Series 34" Combination Top Range with Storage Cabinet

Storage Cabinet Base – A stainless steel storage base with stainless steel doors.

Front-Fired Hot Top – A heavy cast-iron, front-fired hot top plate with 3 individually controlled jet burners rated at 45,000 BTU/hr total. Removable cast-iron ring and lid, perfect for sautéing.

Open Burners – Two 2-piece Starfire Pro® open burners rated at 35,000 BTU/hr per burner with protected pilot lights, removable ring grates and cast-iron top grates. The grate design allows pots to slide easily across the surface from burner to burner. Stainless steel drip tray under open burners.

Note: All Master Series ranges require a high shelf or backguard flue attachment, sold separately.

W x D x H	34" x 38" x 363/8" 86.4 cm x 96.5 cm x 92.4 cm
Weight	375 lb 170.1 kg
Power Output	115000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications

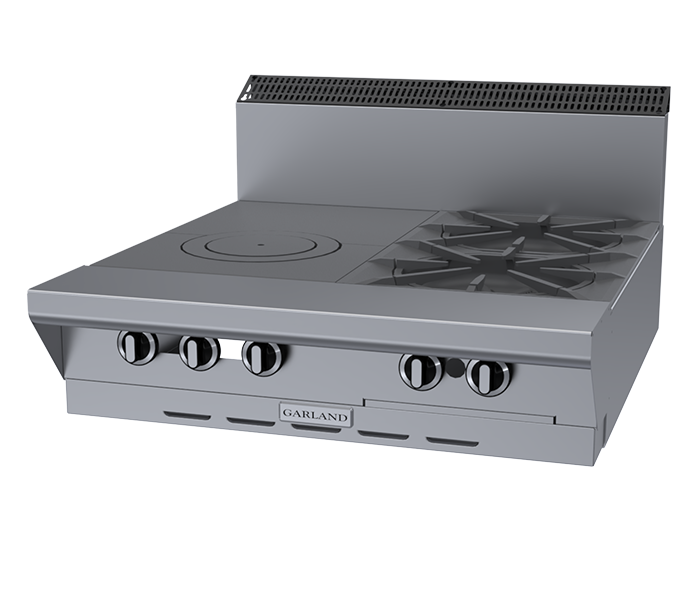

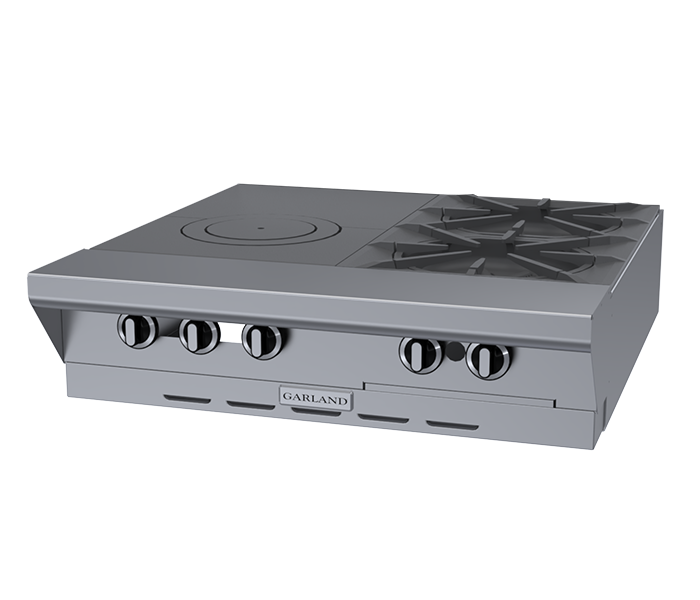

M54T Master Series 34" Combination Modular Top Range

Front-Fired Hot Top – A heavy cast-iron, front-fired hot top with 3 individually controlled jet burners rated at 45,000 BTU/hr total. Removable cast-iron ring and lid, perfect for sautéing.

Open Burners – Two 2-piece Starfire Pro® open burners rated at 35,000 BTU/hr per burner with protected pilot lights, removable ring grates and cast-iron top grates. The grate design allows pots to slide easily across the surface from burner to burner. Stainless steel drip tray under open burners.

Note: All Master Series ranges require a high shelf or backguard flue attachment, sold separately.

Stainless steel stand available, sold separately.

W x D x H	34" x 38" x 91/2" 86.4 cm x 96.5 cm x 24.1 cm
Weight	285 lb 129.3 kg
Power Output	115000 BTUs
Power Input Type	Gas - Natural Gas - Propane
Certifications
