| W x D x H |
601/4" x 31" x 24"
|
| Weight |
464 lb
|
| Power Input Type | Electric |
| Primary Power Input | 115-120 V x 60 Hz x 1 PH |
| Energy Use | 2.9 Amps |
| Certifications |
![]() ![]() ![]() ![]() |
F2900CP
Low-Profile Refrigerator Base Equipment Stands
Built to Perform - Built to Last
Proven Construction
Equipment stands need to have solid cabinet construction to support the cooking equipment, while also having superior refrigeration and drawer systems to match. Delfield has all of the above and more!
| Environmentally friendly R290 refrigerant |
| High density environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane foam insulation throughout unit |
| Top is heavy duty stainless steel, with full perimeter marine edge |
| Standard stainless steel ends |
| Exterior drawer fronts are stainless steel |
| Snap-in drawer gaskets for easy removal |
| Base interior cabinet is cooled with mullion style coated blower coil(s) mounted between each door/drawer section for even air and temperature control |
| Wall-mounted bracket to prevent tipping |
| When ordering, specify make, model and depth of cooking equipment sitting on the equipment stand |
|
Full Extension Plus Drawer System
Full Extension Plus drawer system is a complete drawer system, which can operate independent of the unit it’s installed in. Drawer system is sized to hold 12” x 20” x 4“ deep hotel pans and smaller fractional pans. Drawer system is all stainless steel construction for maximum durability. Drawer track rollers are made of Delrin and do not require grease for operation. Intermediate tracks are removable without tools and house Delfield’s “anti-friction binary roller system”. Drawer boxes are designed with “easy pan grip flanges”. Tracks are designed with a stay shut feature that holds the drawer gasket tight to the base front on uneven floors. Exterior drawer fronts are made of stainless steel; and an interior made of ABS plastic with formed in channels to house the snap-in dart style santoprene gasket. A galvanized brace is foamed in place to be an integral part of the drawer front assembly. Each drawer front is injected with 1.87” of high density polyurethane foam between the exterior and interior. Handles are recessed black plastic and held in with a positive lock system. |
| Interior refrigerated base cabinet section to maintain 36° to 40° meeting NSF7 |
| Digital thermometer |
|
Base
Refrigerated base interior back and bottom are constructed of a stainless steel. Exterior sides, bottom and back are made of galvanized steel. Both left and right interior sides are formed of ABS plastic. The base is injected with 2.00” (5cm) of high density polyurethane foam between the exterior and interior. Refrigerated base fronts are made of 0.095” (2mm) thick ABS thermoformed plastic and backed up by ridged polyurethane water blown injection molded frames. The frames are an excellent thermo-break and superior structural material for fastening doors and drawers. Exterior machine compartment side is constructed of galvanized steel. |
|
Ends
Finished stainless steel ends are standard. Louver, coil panel and drawer faces are all standard with stainless steel construction. Units are supplied with wall-mounted bracket and threaded rod to allow installation of the unit against a solid surface. |
|
Electrical requirements
Electrical connections are 115V-60H-1PH. Remote models must be hard-wired at the installation site. |
| Mounted on casters |
| 8' cord and plug supplied |
|
Exterior Top
Exterior top is 18-gauge stainless steel with full perimeter marine edge. Corners are fully welded with smooth radii corners for easy clean out. Interior sub-top made of 22-gauge 2BF stainless steel is made integral with the top by injecting 2.00” of high density polyurethane foam between the exterior and interior tops. |
|
Casters
Unit is supported with two 14-gauge leg rails that run the entire length of the unit. Leg rails are welded to the bottom side of the unit and are tied together with two 12-gauge braces running front to back. Caster/leg boxes are welded inside the leg rail and 6” casters are mounted standard. |
|
Refrigeration System
Refrigeration system components are R290. Interior cabinet is cooled with mullion style blower coils (coated) mounted between each door/drawer section for even air and temperature control. Electrical connections are 115V-60H-1PH. |
|
Height of surface for setting equipment
Height of service for setting equipment for models with 4" casters is 23.50" and 6" legs or 6" casters is 25.50" |
F2960CP
F2936CP
| W x D x H |
361/4" x 31" x 24"
|
| Weight |
374 lb
|
| Power Input Type | Electric |
| Energy Use | 2.9 Amps |

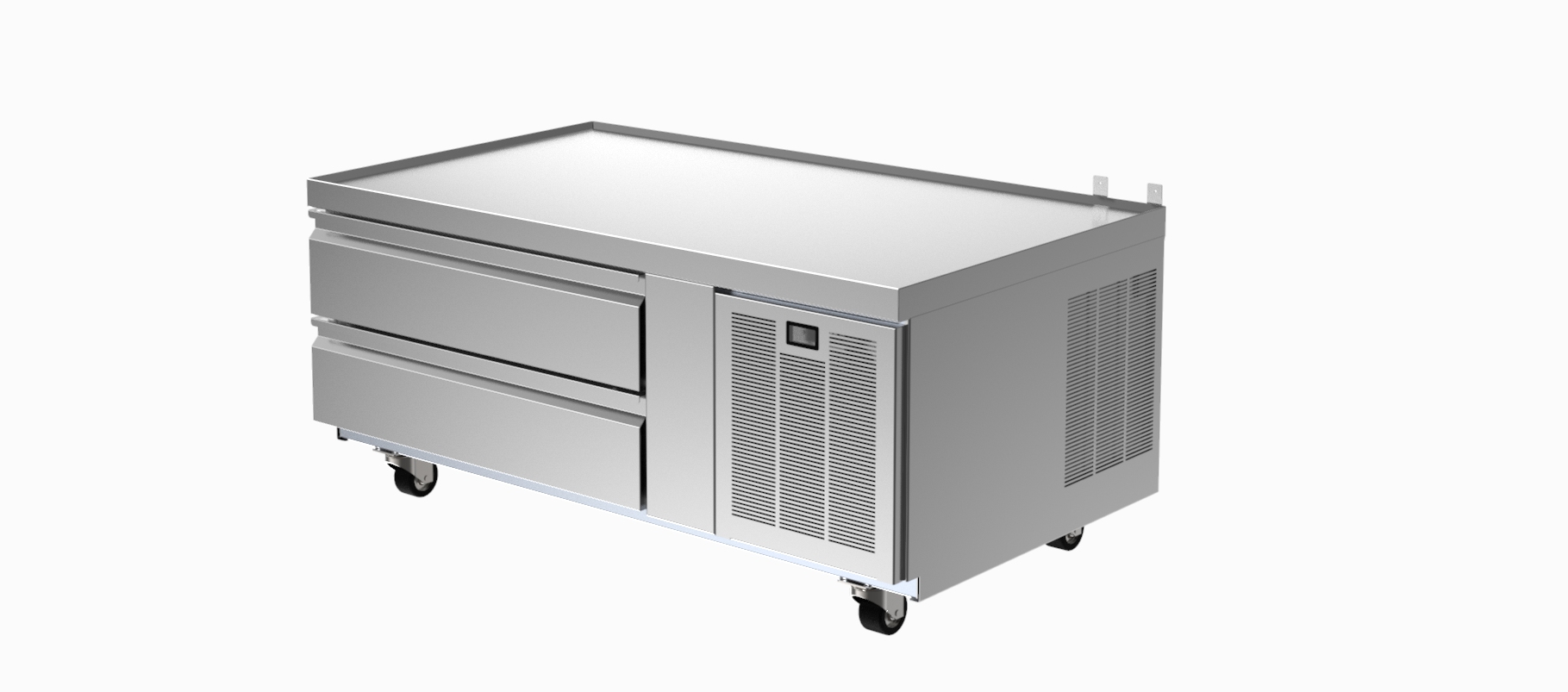

F2952CP
| W x D x H |
521/4" x 311/8" x 24"
|
| Weight |
398 lb
|
| Power Input Type | Electric |
| Primary Power Input | 115-120 V x 60 Hz x 1 PH |
| Energy Use | 2.9 Amps |
F2956CP
| W x D x H |
561/4" x 31" x 24"
|
| Weight |
405 lb
|
| Power Input Type | Electric |
| Primary Power Input | 115-120 V x 60 Hz x 1 PH |
| Energy Use | 2.9 Amps |
F2962CP
| W x D x H |
621/4" x 31" x 24"
|
| Weight |
479 lb
|
| Power Input Type | Electric |
| Primary Power Input | 115-120 V x 60 Hz x 1 PH |
| Energy Use | 2.9 Amps |

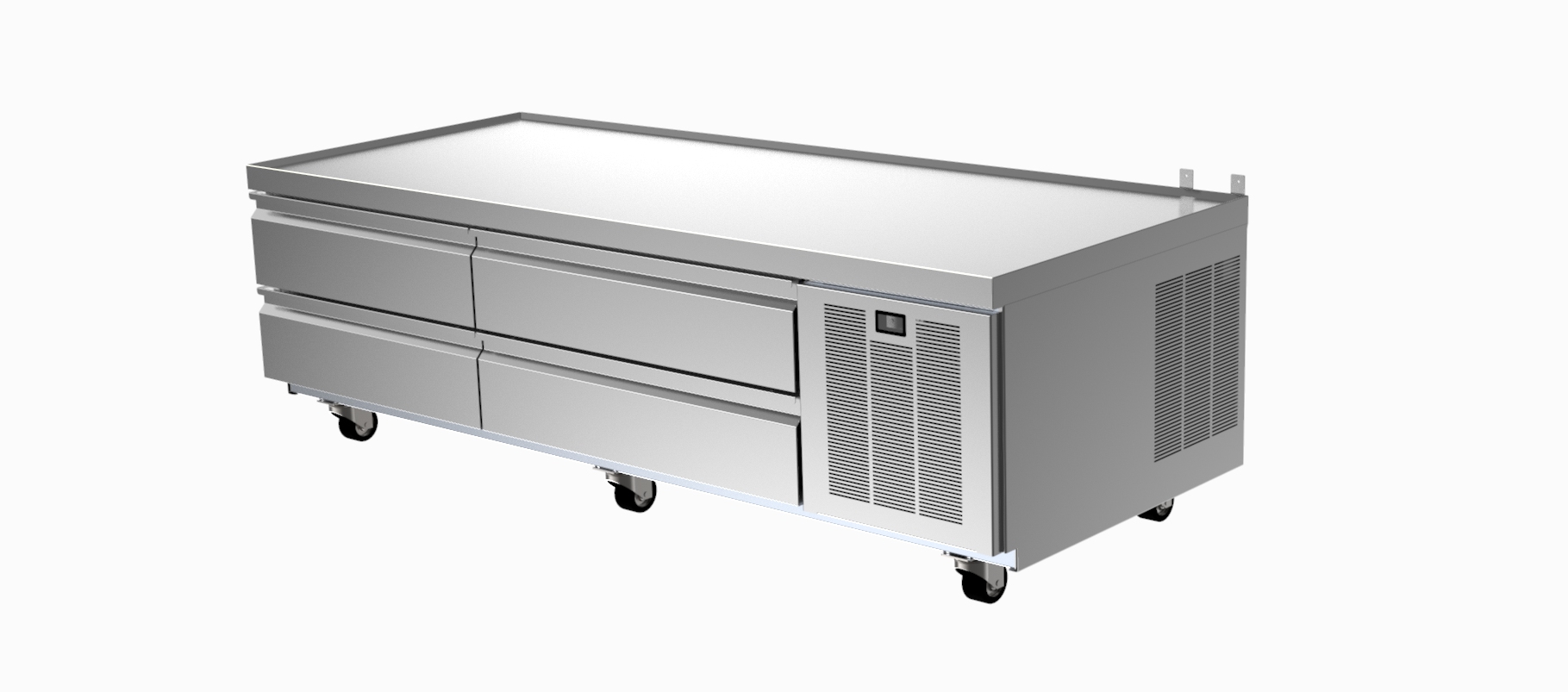

F2975CP
| W x D x H |
751/4" x 31" x 26"
|
| Weight |
540 lb
|
| Power Input Type | Electric |
| Primary Power Input | 115-120 V x 60 Hz x 1 PH |
| Energy Use | 4.8 Amps |
F2980CP
| W x D x H |
801/4" x 31" x 24"
|
| Weight |
600 lb
|
| Power Input Type | Electric |
| Primary Power Input | 115-120 V x 60 Hz x 1 PH |
| Energy Use | 4.8 Amps |

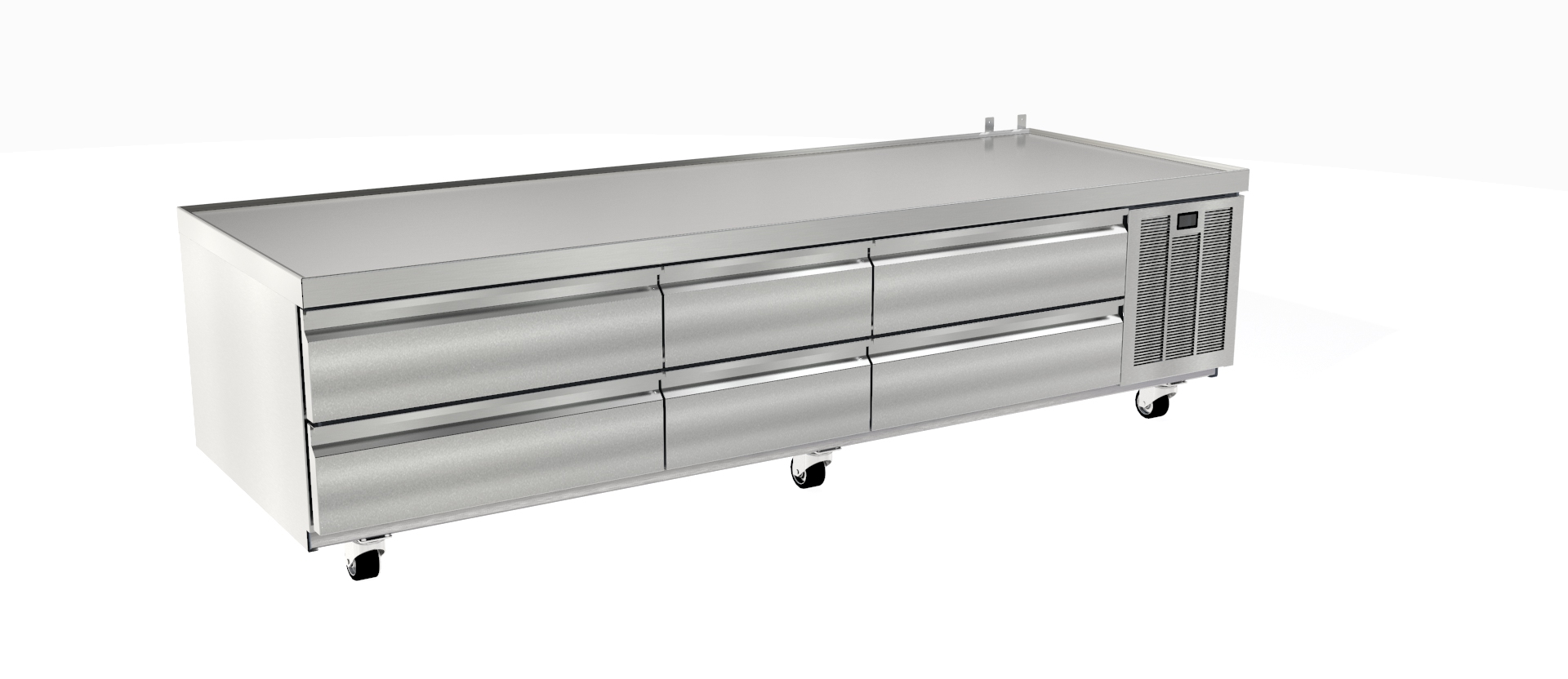

F2987CP
| W x D x H |
871/4" x 31" x 24"
|
| Weight |
672 lb
|
| Power Input Type | Electric |
| Primary Power Input | 115-120 V x 60 Hz x 1 PH |
| Energy Use | 4.8 Amps |

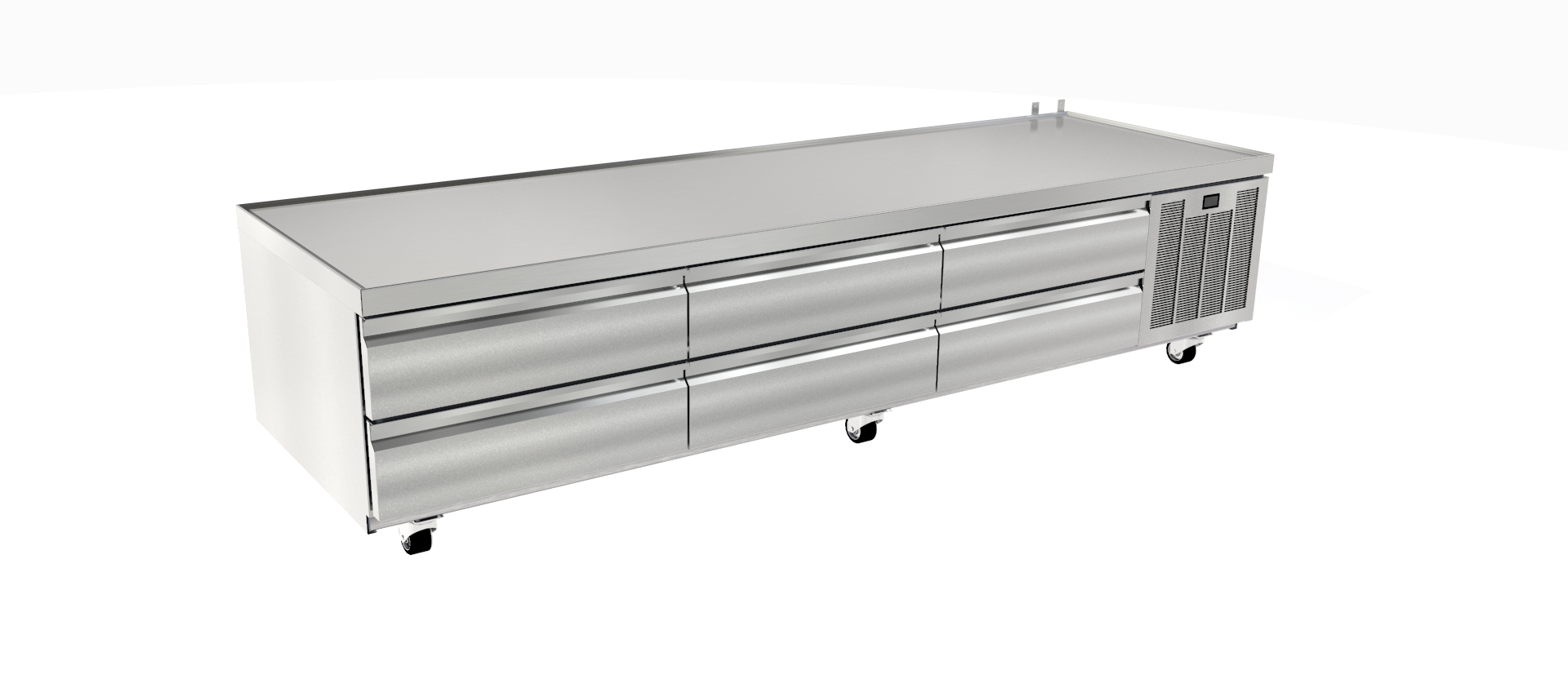

F2999CP
| W x D x H |
991/4" x 31" x 24"
|
| Weight |
725 lb
|
| Power Input Type | Electric |
| Primary Power Input | 115-120 V x 60 Hz x 1 PH |
| Energy Use | 4.8 Amps |

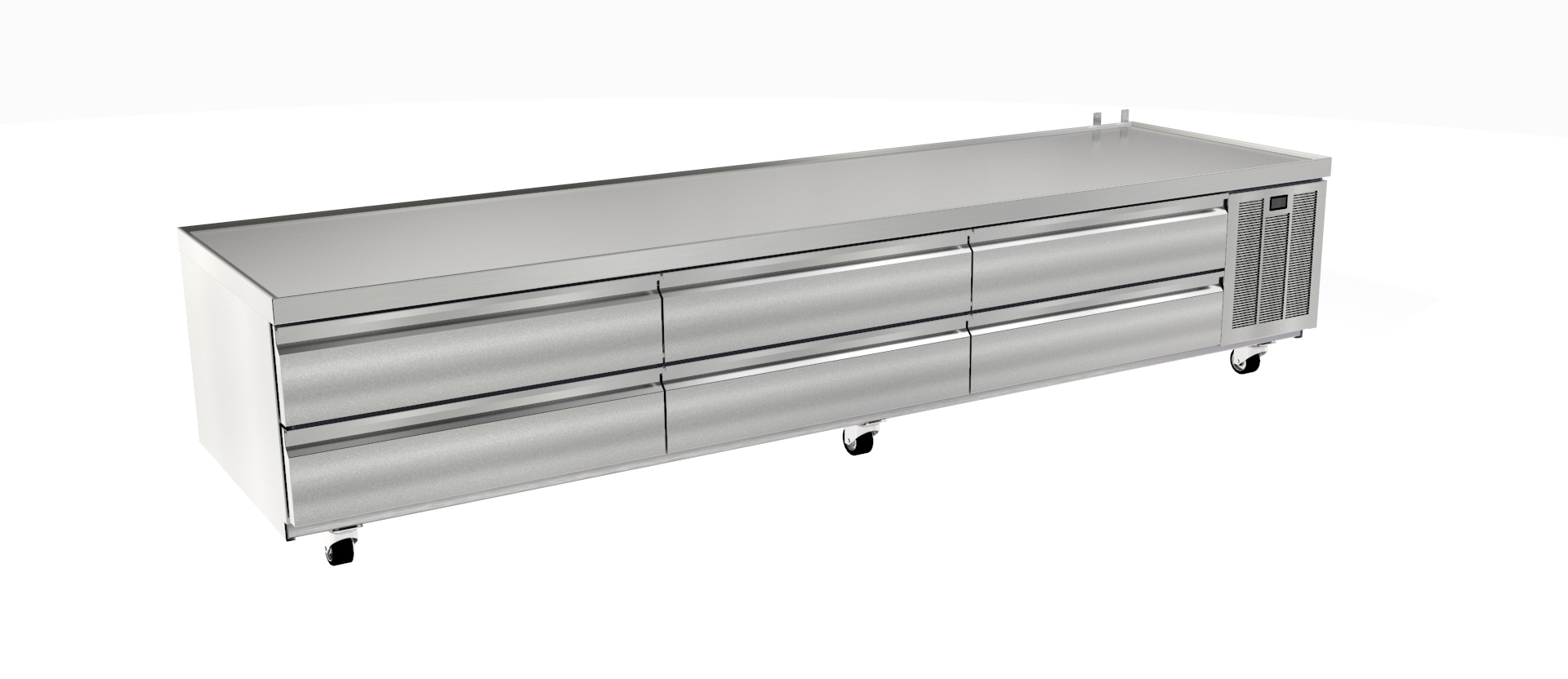

F29110CP
| W x D x H |
1101/4" x 31" x 24"
|
| Weight |
766 lb
|
| Power Input Type | Electric |
| Primary Power Input | 115-120 V x 60 Hz x 1 PH |
| Energy Use | 6.3 Amps |
F2973CP
| W x D x H |
731/4" x 31" x 24"
|
| Weight |
535 lb
|
| Power Input Type | Electric |
| Primary Power Input | 115-120 V x 60 Hz x 1 PH |
| Energy Use | 4.8 Amps |
F2978CP
| W x D x H |
781/4" x 31" x 24"
|
| Weight |
589 lb
|
| Power Input Type | Electric |
| Primary Power Input | 115-120 V x 60 Hz x 1 PH |
| Energy Use | 4.8 Amps |
F2996CP
| W x D x H |
961/4" x 31" x 24"
|
| Weight |
725 lb
|
| Power Input Type | Electric |
| Primary Power Input | 115-120 V x 60 Hz x 1 PH |
| Energy Use | 4.8 Amps |
Doors in lieu of drawers (except 32") |
|
LocksDrawer locks |
|
Mechanical housing left side |
|
Plastic laminate back |
|
Plastic laminate end |
|
Plastic laminate front |
|
Stainless steel back |
|
6" casters in lieu of 4"F2900CP models standard with 4" casters |
|
6.12" adjustable full stainless steel legs and bullet feetRemoval of "C" in the model indicates leg model |
|
Single drawer in lieu of two high drawers (8" deep pans) |
|
8" deep polycarbonate pansFull, 1/2 and 1/3 size dimensions available |
|
Celsius readout for electronic control |
|
Remote refrigeration available in R404a (contact factory) |
