| W x D x H |
6" x 23" x 221/2"
|
| Power Input Type | Electric |
| Certifications |
![]() |
Servend - Cup Dispensers
Servend
Projecting a clean, high quality image is part of any successful foodservice program. Servend cup dispensers help keep your hot or cold drink serving area organized by giving a uniform appearance to the storage of cups and drink accessory items. The cabinets are manufactured in durable stainless steel and have cup tubes which are adjustable to accommodate various size cup diameters.
|
CD: Cup Dispenser
2, 3 or 4 refers to the number of cup storage tubes in the cup dispenser. |
|
A: Gravity-fed cup storage tube
The cup storage tube is positioned at approximately a 45 degree angle and cups slide forward by gravity. Gravity-fed cup tubes can be filled from the rear or front of the cup dispenser. |
|
X: Spring-loaded cup storage tube.
A heavy spring kit in the back of the cup tube keeps cups pushed forward in the cup storage tube. Spring-loaded cup tubes are filled from the front. Light spring kits for styrofoam cups are available as a factory option. |
|
C: "C: top.
Cup dispenser top for height volume lid, strow and napkin storage. Removable plastic top. |
|
U: Universal cup tube.
Each CD4U cup storage tube can hold any cup size from 3 5/8" - 4 5/8" in diameter (approx. 12-44 oz. cups). The CD4U has unique lid and straw storage compartments good for high volume applications. The CD4U cup dispensers are not free standing, they must be mounted to the side of MD Series ice/beverage dispensers via the drain pan pin. |
|
Options (Gravity Feed Only)
01-012-01LT: Light spring kit for gravity cup tubes (per tube) for styrofoam kits. 01-012-01HY: Heavy spring kit for gravity cup tubes (per tube) for paper cups and plastic cups. |
|
Note
Cup diameters must be specified - measure outer diameter of top of cups. Non-standard cup dispensers are available. |
|
Orientation
Available as either Left (CD4U-L) or Right (CD4U-R) |
|
Cup tubes
Four cup tubes (approx. 12-44 oz cups) Can accomodate a paper or plastic cup with a maximum diameter or 4-5/8", foam cup diameter of 3-7/8" No special cup tube sizes available |
|
Mounting
Free standing or can be mounted to the side of MD Series dispensers via drain pan pin. |
CD2X-C
CD3A-C
| W x D x H |
6" x 24" x 261/2"
|
| Power Input Type | Electric |
| Certifications |
![]() |

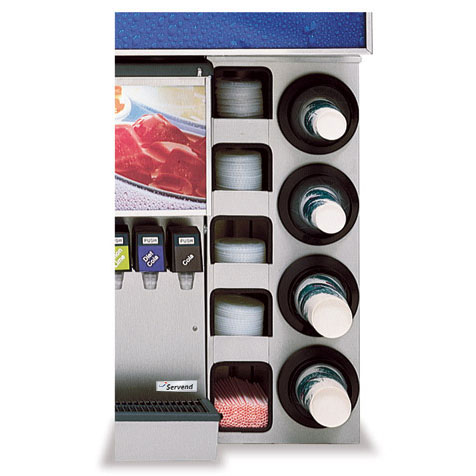

CD4U
| W x D x H |
131/8" x 221/2" x 33"
|
| Power Input Type | Electric |
| Certifications |
![]() |
CD2A-C
| W x D x H |
6" x 24" x 21"
|
| Power Input Type | Electric |
| Certifications |
![]() |
