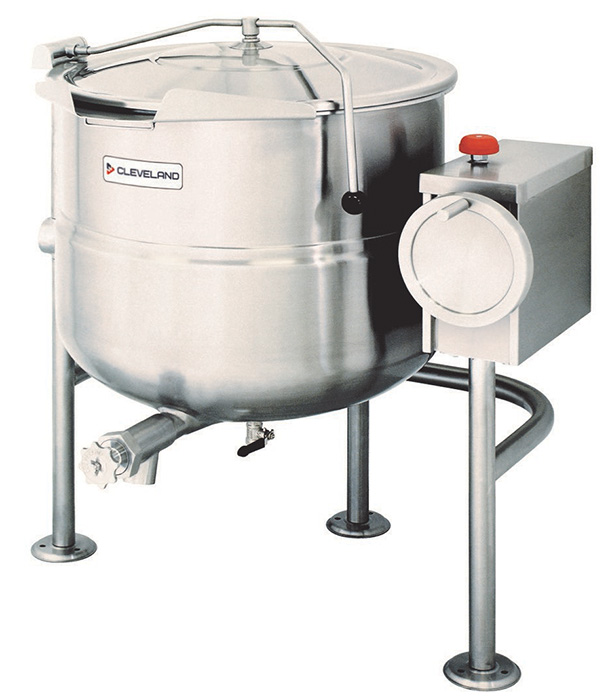

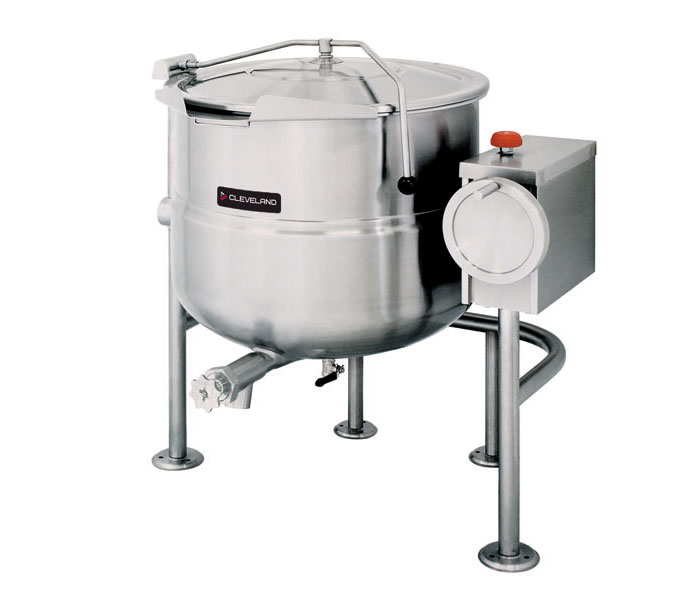

KDL-T: Direct steam kettles, tilting
2/3 STEAM JACKETED, 25, 40 or 60 GALLONS (100, 150 or 225 LITERS)
CLEVELAND, Direct Steam Kettle, Tri-leg mounted, Tilting (hand or power) 2/3 Steam Jacketed. Type 304 Stainless Steel kettle and support legs. 50 psi Steam Jacket Rating; Steam Control Valve; heavy re-enforced Rolled Rim. To operate, connect directly to a steam source supplying 10 to 45 psi steam.
|
Construction
Type 304 Stainless Steel construction, with #4 finish on kettle and supports |
|
Rating
- 50 psi Steam Jacket Rating- 50 psi chrome plated Safety Valve |
|
Pouring Lip
High capacity for chunky products |
|
Condensate Drain Valve
Insulated handle |
|
Kettle Legs
1 5/8" OD, type 304 Stainless Steel, with 3 level adjustable feet, with three-bolt flanges for floor bolting |
|
Tilting
Tilting Mechanism with permanently lubricated, self-locking, Worm Drive of space saving design |
|
Steam Control Valve
Mounted on console |
Cooking Baskets and Tri-Basket Supports(BS and TBS) |
|
Drain Strainers(DS-) |
|
Gallon Markings(KM) |
|
Hot and Cold Water FaucetComes with Swing Spout (DPK) |
|
Kettle Accessory Kit (KAK)Clean-up Brush (CB), 36" Kettle Paddle (KP)36" Kettle Whip (KW), 36" Kettle Brush (KB)Draw-off Brush (DB), 24 oz. Ladle (KL) |
|
Lift-off CoverOne piece, (CL-) |
|
Measuring Strips(MS) |
|
Steam Control KitIncludes: Steam Trap, Condensate Strainer, Check Valve, nipples and fittings, factory assembled and mounted on kettle (SCK1) |
|
Swing Funnels for drain(SF) |
|
Type 316 Stainless Steel kettle interiorFor high acid food products (316) |
