| W x D x H |
927/8" x 38" x 44"
|
| Weight |
1254 lb
|
| Power Input Type | Electric |
| Primary Power Input | 208-230 V x 60 Hz x 3 PH |
| Energy Use | 84 Amps |
| Certifications |
![]() ![]() ![]() |
Custom EcoMark Design
Production Center
Integrated Solutions
From idea, to concept, to design, Delfield’s EcoMark can accelerate your culinary success. With years of design experience and integration, Delfield will deliver the most efficient ergonomic system. We can integrate not only Delfield cold and storage units, but also heating and holding units from Cleveland, Lincoln, Merco, Garland and Merrychef.
|
Electrical Connections
Electrical connections are 115 volts, 60 Hertz, single phase. Unit has a 8' (2.4m) long cord and plug. |
|
Casters
Casters: Unit is mounted on 5" (13cm) diameter casters; overall height of casters is 6.13" (16cm). |
|
Exterior Top
Exterior top is one-piece, 22-gauge stainless steel with integral 2.12” (5.4cm) square nosing on the front. |
|
Exterior back and bottom
Exterior back and bottom are two-piece 24-gauge galvanized steel. Exterior ends are stainless steel. |
|
Base Interior
Base Interior has 22-gauge stainless steel back and bottom. Base interior ends and door frames are thermoformed ABS plastic. Base is insulated with 1.5" (3.8cm) high density foamed in place polyurethane. End of base has a machine compartment, standard on right, with condensing unit installed. |
|
Refrigeration Systems
Cabinet has a blower coil assembly with expansion valve located behind door mullion. Base is equipped with independently controlled thermostat, solenoid valve and condensate evaporator. On/off switch for unit is located on panel above louver. Refrigeration system in the base will maintain 36°F (2°C) to 40°F (4°C). |

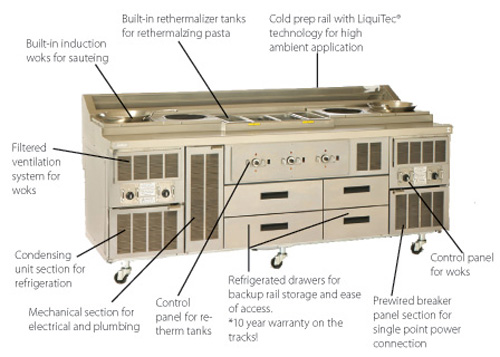

| Self contained refrigerated base with heavy duty drawers |
| Drawers are backed by a 10-year warranty on the track assembly |
| Self contained LiquiTec® cold pan |
| Built-in wok style induction cooker |
| Two pasta rethermalizers |
| Sauce warmer, sized for 1/3 pan |
| Utility bin, sized for 1/3 pan |
| Adapter bars for drawers provided |
| Mounted on casters for easy cleaning and installation |
|
High density foamed in place environmentally friendly foam
Kyoto Protocol compliant, non ODP (Ozone Depletion Potential), non GWP (Global Warming Potential) polyurethane keeps energy costs low |
| One year parts and labor, one year compressor standard warranty |
|
Drawers
Drawers have a 22-gauge stainless steel exterior with thermoformed ABS plastic interior liner. Drawer frames are 12-gauge stainless steel. Drawer slides are 11-gauge stainless steel with Delrin bearings. 19" drawers hold one full size 12" x 20" pan, 4"-6" (10.1cm - 15.2cm) deep, each 27" drawer holds two full size 12" x 20" pan, 4"-6" (10.1cm - 15.2cm) deep. Pans are supplied by others. |
