18600PDLP

Home
18600PDLP

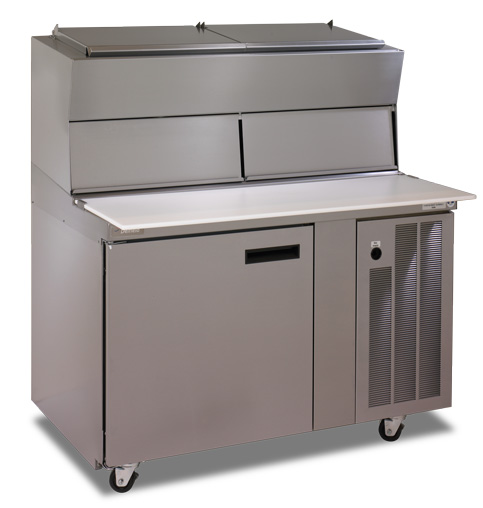

18648PDL Closed

18600PDLP

Self-Contained Refrigerated Dual Rail Prep Table with Flush Mount LiquiTec® Raised Rails

Features
Technical Specifications
Videos
Downloads

Exterior Top
Constructed of one-piece 18-gauge stainless steel, with integral 2.12" (5.4cm) high square nosing at the front. Top has two mechanically cooled LiquiTec® refrigerated raised rails at the rear with openings to accommodate pans (provided by others). Rail interiors are 22-gauge stainless steel. Raised rail openings have 18-gauge stainless steel hinged removable lids. Unit is equipped with separate expansion valve and on/off switch for refrigerated rails. Temperature in top openings maintains 33°F (1°C) to 41°F (5°C) with pans flush mounted at 86°F (29.7°C) ambient room temperature, meeting NSF 7 requirements.

Exterior Back, Bottom and Ends
Unfinished galvanized steel back and bottom. Exterior ends are finished with 22-gauge stainless steel.

Base Interior
Stainless steel back and bottom. Base interior sides and door frames are thermoformed ABS plastic. Each interior door section has (1) 25" (63.5cm) deep removable epoxy coated wire shelf. Base is insulated with 2" (5.1cm) high density environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) foamed in place polyurethane. End of base has a machine compartment with condensing units installed.

Door(s)
22-gauge stainless steel exterior front, with a thermoformed ABS plastic interior liner.

Refrigeration System
R290 refrigerant. Cabinet has (1) blower coil assembly with expansion valve on 48" and 72" models. Refrigerated base maintains temperature of 36°F (2°C) to 40°F (4°C). On/off switches for rail and base are located behind the louvered panel. A 2" diameter hole is on the louver for easy access to rail on/off switch

Electrical Connections
115 volt, 60 Hertz, single phase. Unit is wired with 3-wire, grounded, maximum 8' (2.4m) cord and plug.

Casters
Equipment is mounted on 4" (10cm) diameter casters.

48” Dual Rail Prep Table with (4) 12”X20” pan openings

72” Dual Rail Prep Table with (6) 12”X20” pan openings

18648PDLP

W x D x H	48" x 311/2" x 531/2" 121.9 cm x 80 cm x 135.9 cm
Weight	691 lb 313.4 kg
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	10.1 Amps
Certifications

18672PDLP

W x D x H	72" x 311/2" x 531/2" 182.9 cm x 80 cm x 135.9 cm
Weight	873 lb 396 kg
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	12.7 Amps
Certifications
