F15 Serview - Pass Through Display Case

Home
F15 Serview - Pass Through Display Case

F15 Serview - Pass Through Display Case

Pass Through Self-Contained Refrigerated Display Cases

Features
Technical Specifications
Accessories
Videos
Downloads

Exterior
Display exterior sides are made of 18-gauge stainless steel

Interior
ABS plastic interior sides with molded shelf supports

(3) adjustable epoxy coated wire shelves

Switch
On/off switch for the display section light(s)

Fans
Top mount coil with multiple fans circulating the air throughout the cabinet

Control
Display section runs off a thermostatic control

Doors
Sliding and removable self-closing .50" thick argon filled, low-E, warm edge insert, thermopane glass doors with left and right vertical gasket. Standard with door lock.

Base Ends
Standard heavy duty units have unfinished base ends

Base Top
Base top is constructed of 16-gauge stainless steel

Insulation
High density polyurethane foam reinforced ABS plastic interior sides with molded shelf supports

Refrigerated Base
Refrigerated base fronts are made of .095" thick ABS plastic backed by rigid polyurethane water blown injection molded frames (NO WOOD)

Shelf
Epoxy coated shelf for each door

Exterior Door
Exterior door fronts are stainless steel with ABS plastic liner

Gasket
Snap-in dart style vinyl magnetic gasket

Handles
Door handles are recessed black plastic and held in with a positive lock system

Legs
6.12" adjustable full stainless steel legs and bullet feet

Cabinet
Base interior cabinet is cooled with mullion style coated blower coil(s)

Leg Rails
14-gauge leg rails that run the entire length of the unit

Refrigerant
Environmentally friendly R290 refrigerant

F15PC48DP

W x D x H	48" x 34" x 78" 121.9 cm x 86.4 cm x 198.1 cm
Weight	807 lb 366 kg
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	7.9 Amps
Certifications

F15PC60DP

W x D x H	60" x 34" x 78" 152.4 cm x 86.4 cm x 198.1 cm
Weight	1009 lb 457.7 kg
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	7.9 Amps

F15PC72DP

W x D x H	72" x 34" x 78" 182.9 cm x 86.4 cm x 198.1 cm
Weight	1159 lb 525.7 kg
Power Input Type	Electric
Primary Power Input	115-120 V x 60 Hz x 1 PH
Energy Use	8.1 Amps

	220 volt/50 cycle* *Inclusion of these options will alter the electrical specifications of unit
	Stainless steel end(s)
	Laminate Back
	Laminate End
	Laminate Facing Laminate facing
	Additional shelves (36", 48", 60" & 72")
	Adjustable height casters
	Celsius readout for electronic control
	Narrow depth display cabinet
	Remote refrigeration (units must be hard wired in the field)
	Stainless steel back
	Reflective glass doors (36", 48", 60" & 72")

Related Products

ASM

F15 Serview - Mirrored Back Display Case

F15 Serview - Mirrored Back Display Case

F15 Serview - See Through Display Case

F15 Serview - See Through Display Case

F5 Serview Drop In - Mirrored Back Display Case

F5 Serview Drop In - Mirrored Back Display Case

F5 Serview Drop In - Pass Through Display Case

F5 Serview Drop In - Pass Through Display Case

F5 Serview Drop In - See Through Display Case

F5 Serview Drop In - See Through Display Case

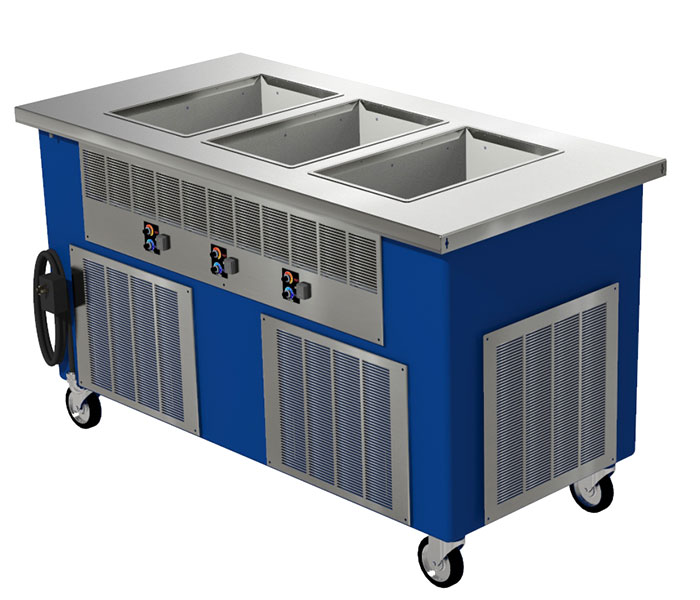

KFW-NU FlexiWell ShellyGlas

KFW-NU FlexiWell ShellyGlas

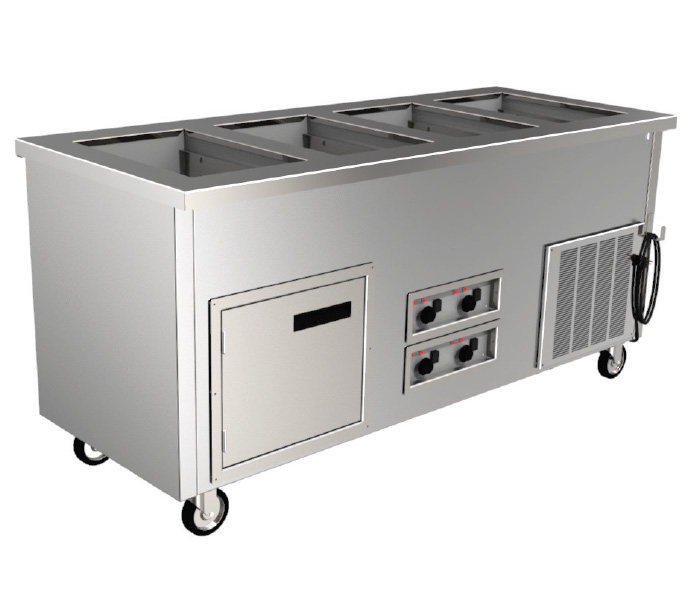

SFW-NU FlexiWell

SFW-NU FlexiWell

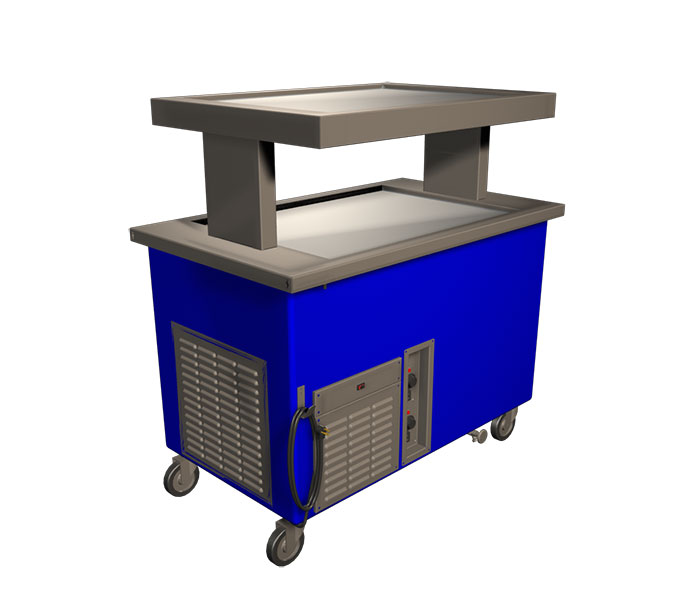

KFTS-NUP FlexiTop
